Eleaf ELLO 2ml

The ELLO 2ml atomizer features its all-new HW series coils, bringing you ultimate vaping experience with nice flavor. The retractable top fill system makes it really easy to fill the tank. You just need to slide the drip tip back and it reveals the fill port. The dual large air inlets allow optimal airflow for great vapor production. Not only does the ELLO come in various colors for your choice, it also provides you with two drip tips, one with a tapered elegant shape and the other with a wider bore for more airflow and flavorful taste.

Eleaf ELLO 2ml parameters:
• Diameter: 25mm
• Height: 46mm/54mm
• E-liquid capacity: 2ml/4ml
• Weight: 45.6g/50.5g
• Thread type: 510 thread

HW Coils for Big Clouds and Optimal Flavor

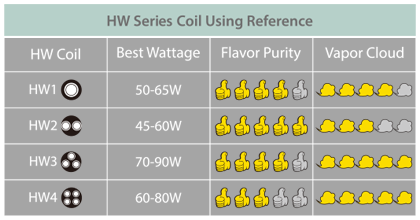

The ELLO comes with the HW coils: HW1 Single-Cylinder 0.2ohm Head, HW2 Dual-Cylinder 0.3ohm Head and HW3 Triple-Cylinder 0.2ohm Head, providing you with different vaping experience.

• Convenient Retractable Top Fill System. To fill the ELLO tank, you just slide the drip tip back and it reveals the fill port, which is quite easy to use and works very well.

• Offering 4ml and 2ml Options. There are two versions of atomizers for you to choose to go with the Eleaf iKonn 220: ELLO (4ml) type & ELLO (2ml) type.

• Offering Two Drip Tips. The ELLO provides two drip tips for you, one with a tapered elegant shape and the other with a wider bore for more airflow and flavorful taste.

• Detachable Parts for Easy Cleaning. All parts of the ELLO tank can be detached and reassembled, much more convenient to clean the tank.

• Dual Air Inlets with Optimal Airflow. The dual air inlets allow optimal airflow for great vapor production. And the airflow is adjustable by turning the airflow control ring.

ELLO content:
• 1×ELLO Atomizer (4ml/2ml)
• 1×HW1 Single-Cylinder 0.2ohm Head
• 1×HW2 Dual-Cylinder 0.3ohm Head
• 1×HW3 Triple-Cylinder 0.2ohm Head
• Spare Parts
• User Manuals

How to fill
Top E-liquid Filling: The e-liquid can easily be filled by pushing to side the top cap (find the arrow at the side of top cap). Please let the tank stand for 5 minutes, so the cotton can be saturated with juice before using.

Note:
1. Please don’t add e-liquid into the air pipe.
2. Please don’t overfill and make sure the e-liquid level is between 10%-90%.
3. Please first drip a few drops of e-liquid directly into the wick of the coil to make it fully saturated before first use.
4. Please use proper PG/VG ratio liquids for this type of tank

How to fit / exchange coil
1. Make sure the clearomizer is detached from the battery.
2. Turn the clearomizer upside-down, so that the mouthpiece is pointing towards the floor.
3. Unscrew the base of the clearomizer (the part that screws into the battery).
4. Unscrew the coil from the base and fit new. Screw the coil tightly all the way in (a loose coil will cause the clearomizer to leak from airflow)
5. Now is the time to fill the tank with liquid. After filling wait 5 min to let liquid soak into the cotton
6. Screw the base with new coil back onto the clearomizer body.
7. Screw the clearomizer onto your battery.

Sub ohm device. Worth reading before buying:
This type of device is intended for the user with grater knowledge and experience. Coils used are below 1.0 ohm so that higher Wattage could be used. Before you use please read manual. Often, this kits are equipped with additional options that allow you to adjust Wattage.

For Sub ohm devices we recommend that you do not use liquids with nicotine higher than 6mg / ml and only good quality liquids with 50/50 PG / VG or higher VG. Devices of this type produce a lot more of vape, which results in a stronger hit to the throat (like higher nicotine in the basic device). Ask if you're not sure ... we don't bite ;-)

The warranty period:
The warranty does not cover Coils or Clearomizer, as these parts are quickly used up while the products are put to normal use.
